Signal Tower Relays

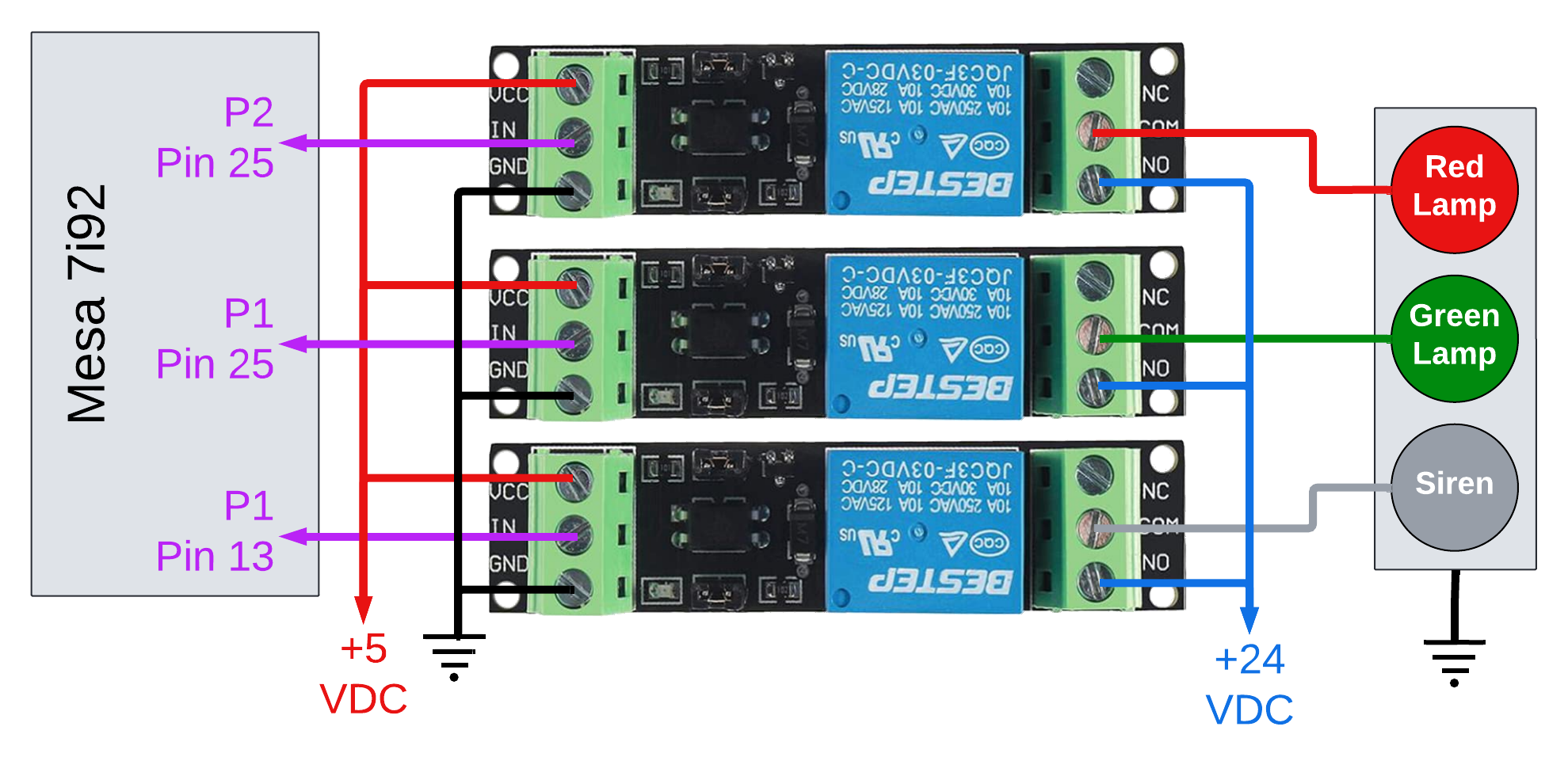

Signal Tower Relay Connections
Key Notes
The connections to the Mesa 7i92 is based on the Mesa 7i92TH Pin Mapping.
This is based on a relay operating at +5 VDC.
There are other relays which operate at +3 to 3.3 VDC, or other voltages. The red VCC line will need to be adjusted to match the relay’s voltage requirements.
|
